HEGENSCHEIDT U2000-150 - Underfloor wheelset reprofiling up to 180kN axle load

Economical and high-precision machining of wheelsets, both for high-speed trains and for local trains in installed and removed condition, are the core competencies of our underfloor wheelset turning machines. Thanks to the two different sizes 150 and 400, wheelsets with a running circle diameter of min. 350 mm and max. 1400 mm can be reprofiled. Naturally, the modern underfloor wheelset lathes meet all currently known working and precision requirements and their overall design is also geared towards future developments. As pioneers in wheelset reprofiling, our machines currently represent the highest standard in wheelset machining technology.

Application and use

The CNC-controlled U2000-150 is a universally usable, dynamically rigid and particularly operator- and service-friendly underfloor wheel lathe for reprofiling wheelsets in both mounted and dismounted condition for axle loads up to 180kN. HEGENSCHEIDT underfloor wheelset lathes are suitable for wheelsets of mainline railroads as well as for wheelsets of transport companies (streetcars, subway railroads).

For simultaneous machining of wheelsets in bogies with mechanically uncoupled axles, a tandem version U2000-150D is also available.

Added value

State of the art reprofiling of tram and metro wheelsets, both mounted and demounted
Optimum cost-effectiveness thanks to high utilization rates, precision, long life, and low maintenance costs
Ergonomic and simple operation through a central control panel with direct access to all machine functions
Automatic processing to reduce the operator‘s workload and guarantee precision
Reliable protection against flying chips during machining

Function

The U2000-150 includes the reprofiling and partial reprofiling of wheelsets, the one-sided reprofiling of wheelsets, the machining of inner and outer wheel end faces, the machining of inner shaft brake discs and/or wheel brake discs and other options according to technical agreement. The machine is equipped with an automatic measuring system and guarantees high precision reprofiling that meets all known work and accuracy requirements.

The machine is operated from a central control panel so that the operator has constant access to all machine functions in the optimal working position. The operator is safely protected from flying chips during machining. The automatic processing system reduces the operator‘s workload and thus enables easy machine usage.

Underfloor wheel lathe U2000-150

Machine specification

Machine data
Machine dimensions (L x W x H)	5,000 mm x 2,500 mm x 2,300 mm (with track gauge 1,435 mm)
Pit dimensions (L x W x H)	7,000 mm x 6,000 mm x 2,300 mm (with track gauge 1,435 mm)
Machine weight	16 t
Power (per machine)	80 KVA
Accuracies
Maximum difference in diameter between both wheels of a wheel set*	≤ 0.1 mm
Maximum difference in diameter between the wheels of a bogie*	≤ 0.3 mm
Maximum radial runout*	≤ 0.1 mm
Maximum chip cross-section per support	6 mm²
Optional equipment
	Machining of wheel brake discs Machining of internal and external shaft brake discs Smoke extraction Machining of mechanically coupled wheelsets Slip monitoring Database management Automatic lubrication Shifting vehicle
Wheelset dimensions
Minimum running circle diameter**	350 mm
Maximum running circle diameter**	1,250 mm
Maximum axle load	180 kN

* for solid wheels ** other diameters possible after inspection

Success story with the Potsdam public transport company

We were guests at Verkehrsbetriebe Potsdam and took a look behind the scenes. The aim of our filming was to document the practical success story of the interaction of the newly developed and proven HEGENSCHEIDT wheelset maintenance modules. The following systems were applied: TWM - Total Wheelset Management Software as THE central element of modern wheelset maintenance, the ARGUS overrun measuring system for wheelset diagnostics and the U2000-150 underfloor wheelset lathe.

"We decided in favor of HEGENSCHEIDT because HEGENSCHEIDT is the only company where the measurement results count as measurement results and not only as values based on corresponding certifications", explains Matthias Möbius, Workshop Manager / Tram Maintenance, the decision in favor of HEGENSCHEIDT systems.

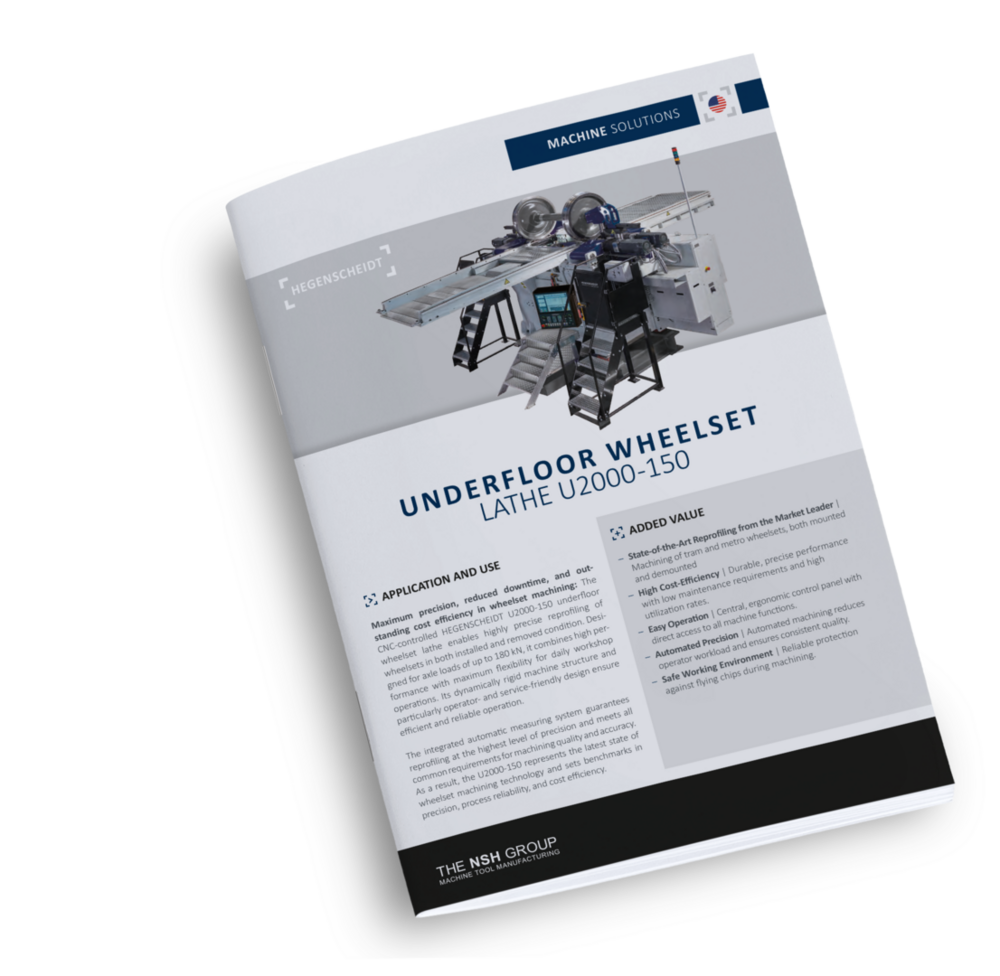

Brochure

Here you will find all the contents of the U2000-150 as a download.

DOWNLOAD | PDF 1.79 MB
